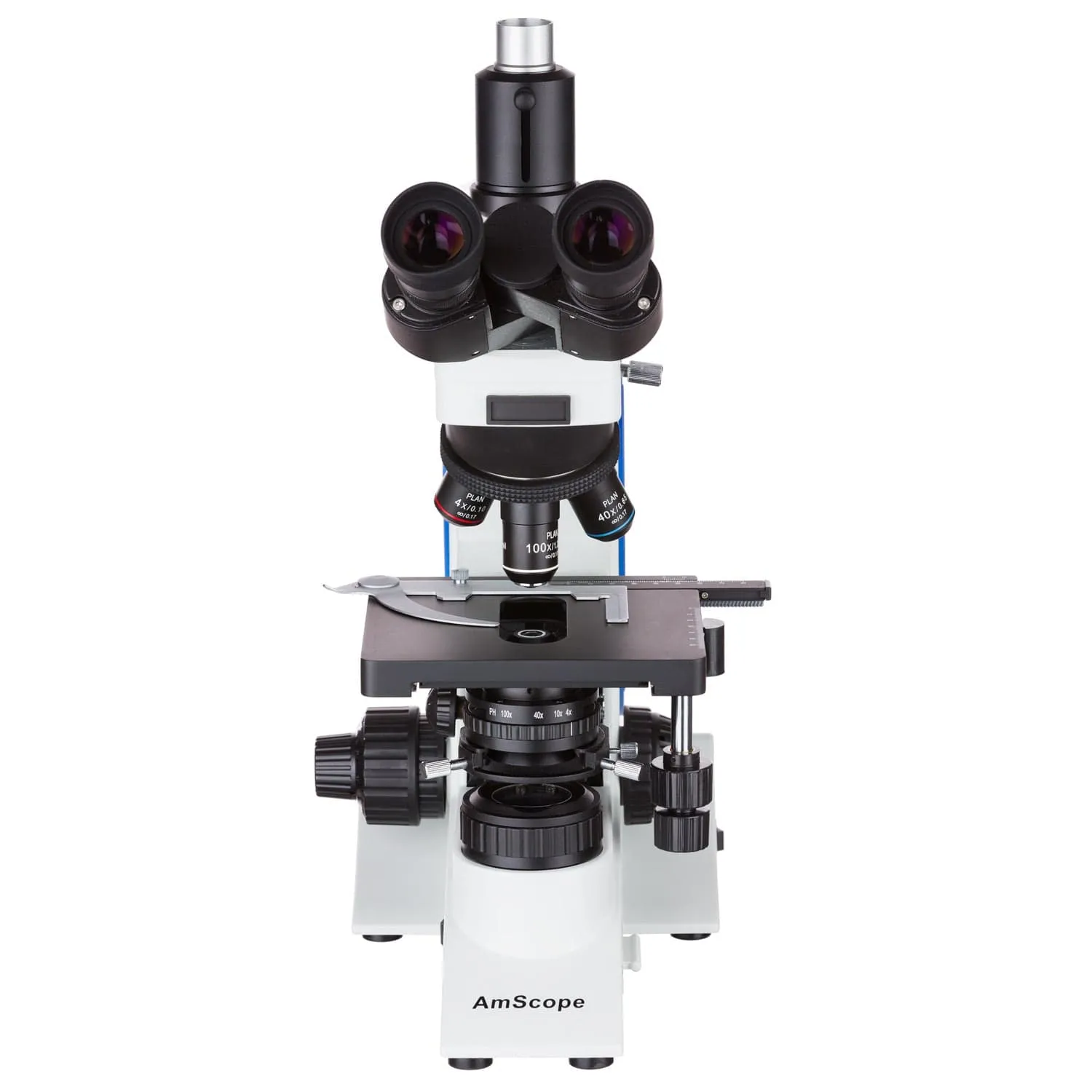

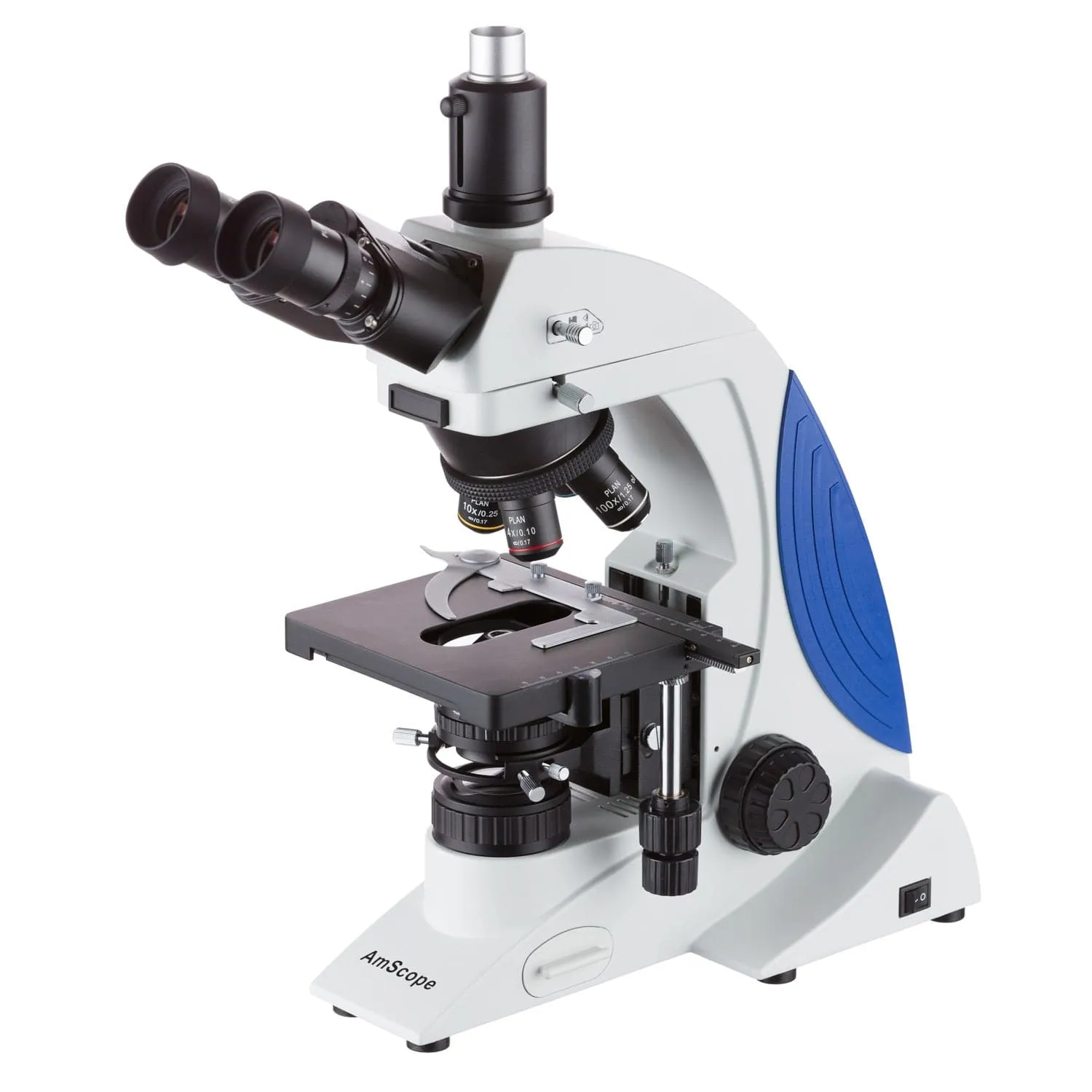

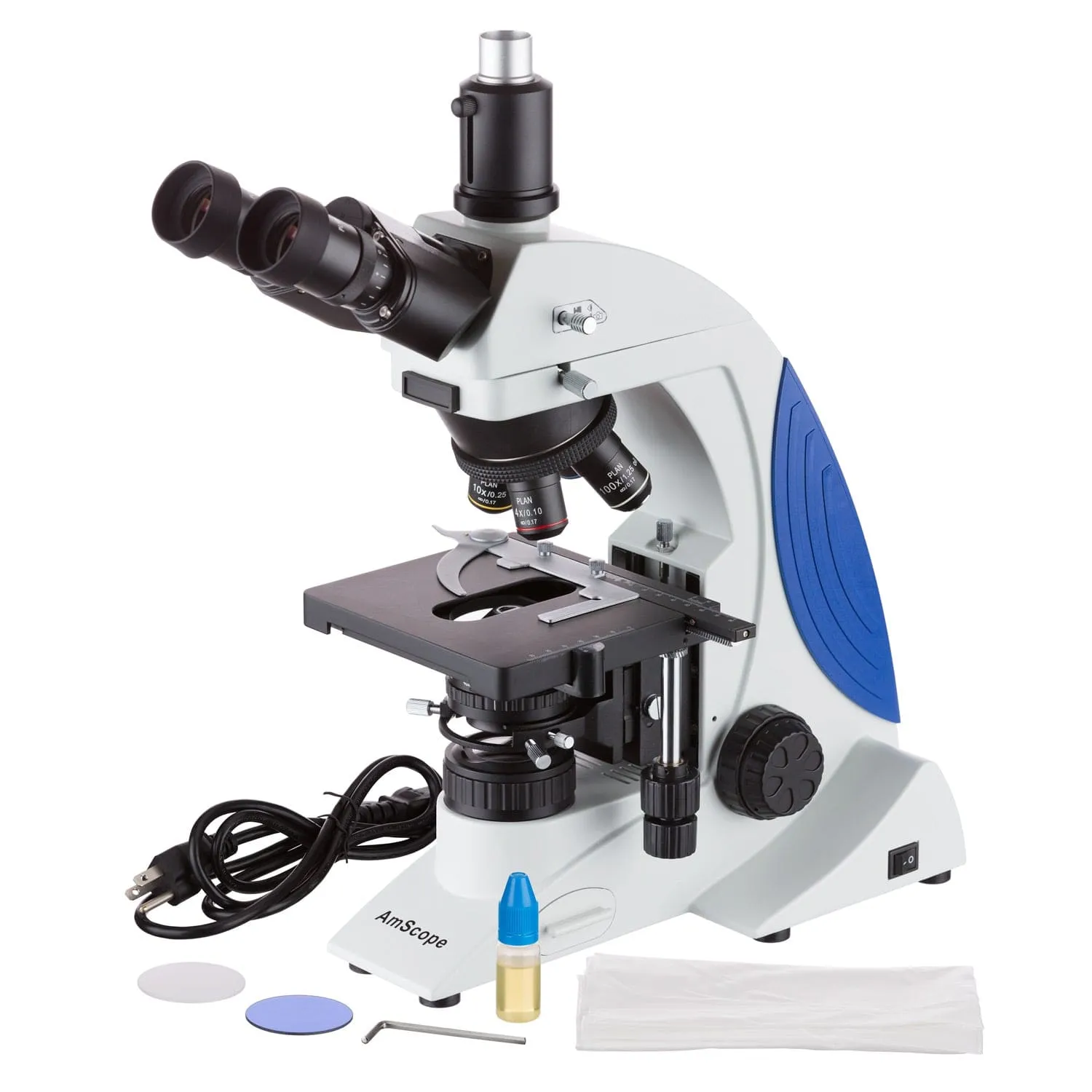

This brand new professional, research grade trinocular compound microscope comes equipped with a top of the line infinity Plan color corrected optical system, and offers research grade performance. Its crystal clear optics and precise mechanical adjustment systems promise the best quality performances for advanced applications. The backward nosepiece design allows copious room for easy and convenient operation. This microscope has four high quality Infinity Plan objectives (4X, 10X, 40X, 100X), a pair of extreme widefield 10X, 20X and 25X eyepieces, a Kohler illumination system, a 30-degree incline on the ocular tubes for comfortable viewing, 360-degree swiveling, compensation-free trinocular head, a coaxial coarse & fine focusing system, and a 3D mechanical stage. It provides ten levels of magnification: 40X, 80X, 100X, 200X, 250X, 400X, 800X, 1000X, 2000X, 2500X. It is an ideal instrument for advanced research organizations, laboratories (especially start up labs), hospitals/clinics, and collegiate institutes.
Features :
Infinity Color Corrected Optical System with High Resolution
Fully Coated Optics with Crystal Clear & Sharp Images
Precise Mechanical Control System
Reversed Nosepiece Design
Kohler Illumination System with Continuous Intensity Adjustment

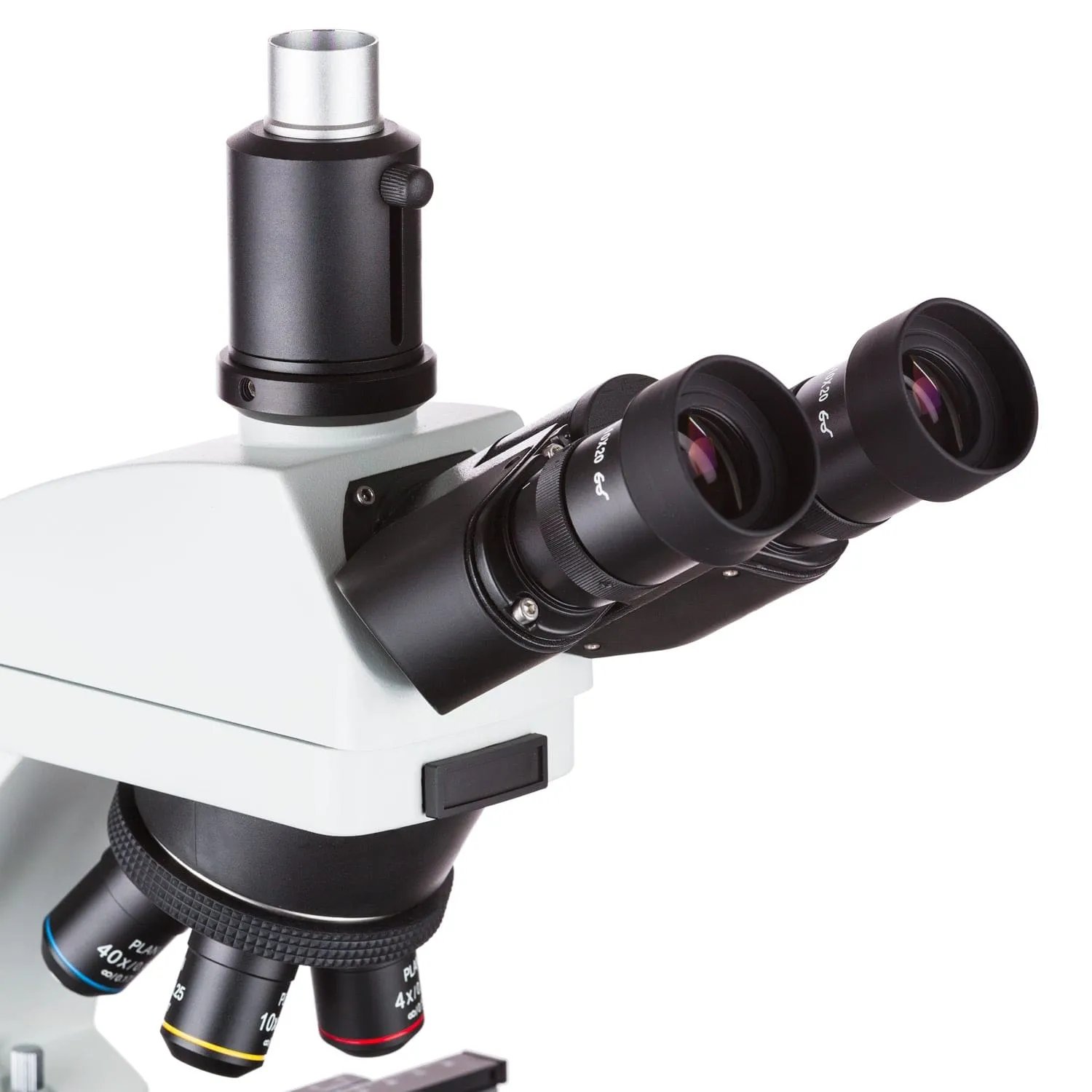

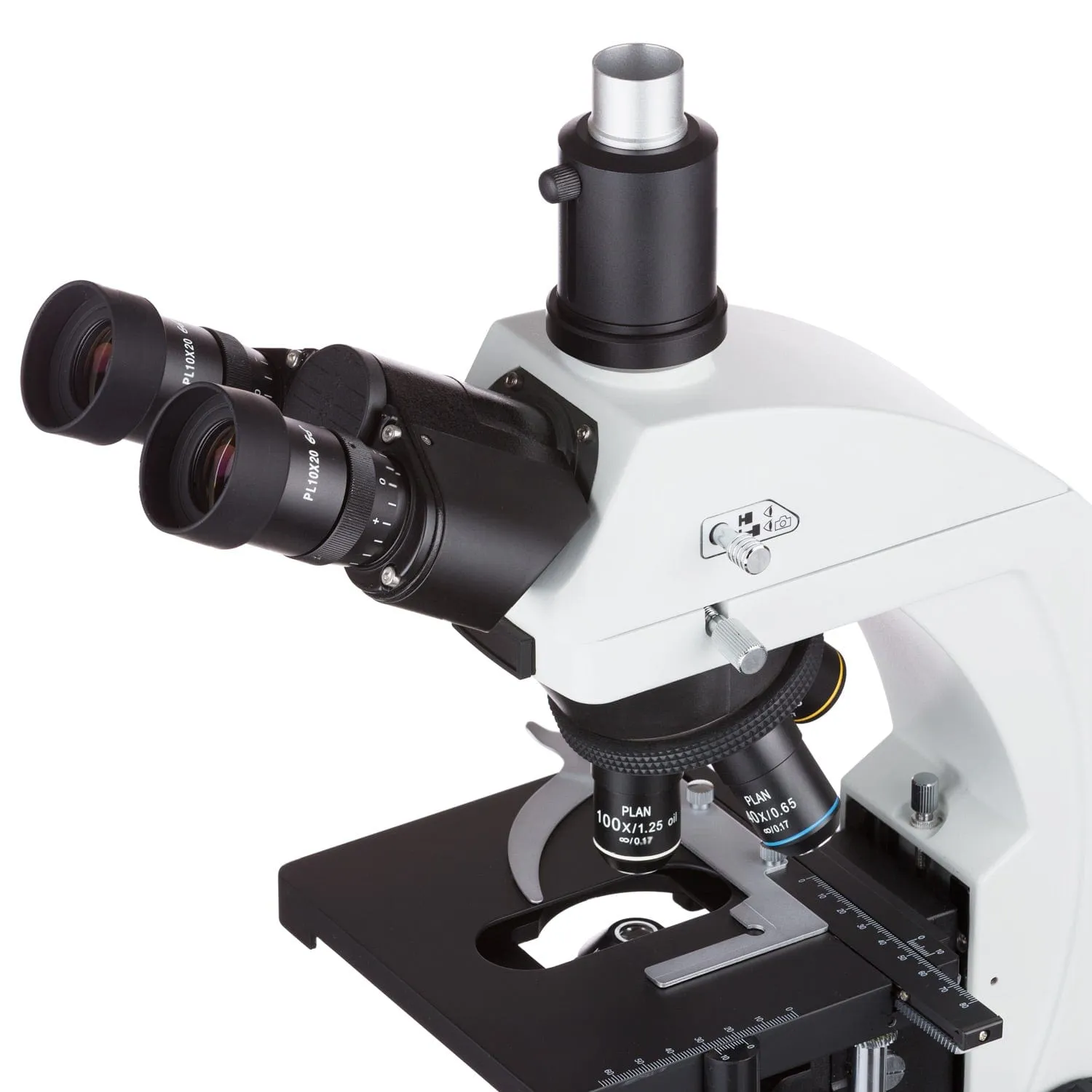

30-Degree Inclined, 360-Degree Swiveling, Compensation Free Gemel Trinocular Head
Ten Magnification Levels: 40X, 80X, 100X, 200X, 250X, 400X, 800X, 1000X, 2000X, 2500X
Intensity-Variable Transmitted LED Lighting System

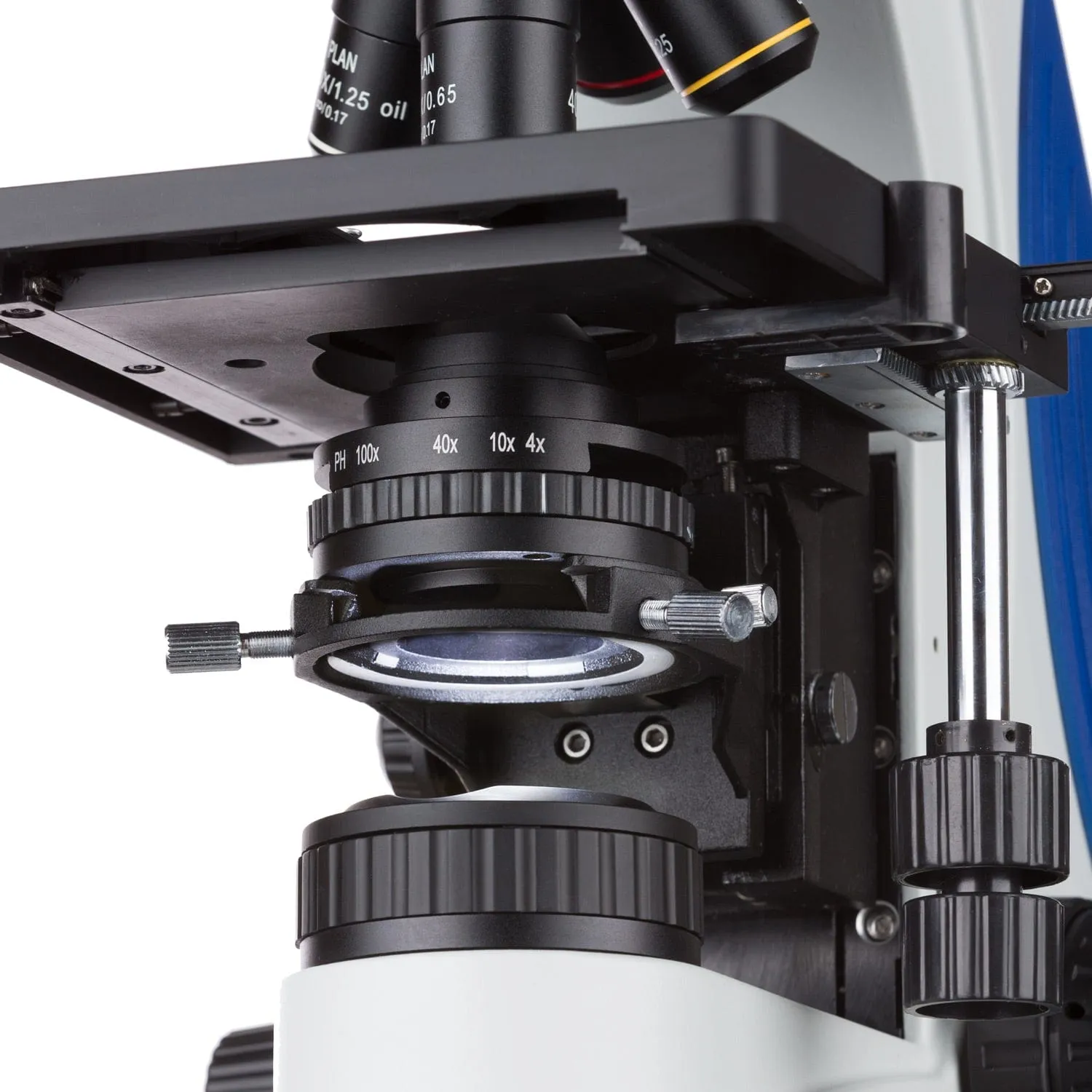

Abbe Condenser with Iris Diaphragm
Rack and Pinion Adjustment for Condenser
Low Position Coaxial Stage Movement Controlling Knobs
Dual Coaxial Focusing Control
Adjustable Interpupillary Distance
Adjustable Diopter on Eyepieces
Durable Cast Alloy Frame with Stain Resistant Enamel Finish
Four Infinity Plan Objectives Included
Three Pairs of Extreme Widefield Eyepieces Included
Quadruple, Reversed, Extra-Large Nosepiece with Wide, Knurled Grip for Easy Operation

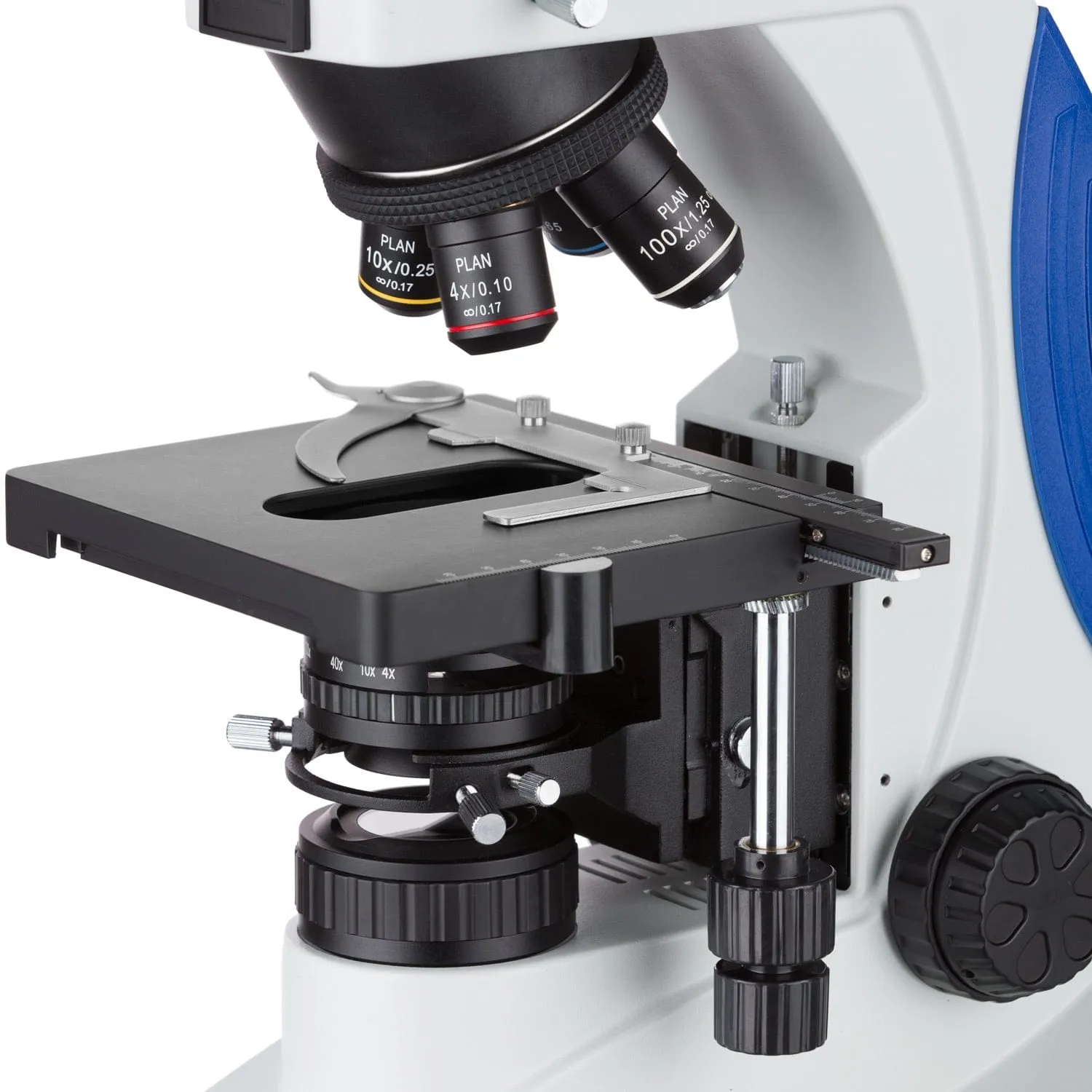

Large Double Layer Mechanical Stage with Stain Resistant Coating
Upward Stage Limit Stop to Protect Objectives and Slides
Manufactured under ISO 9001 Quality Control Standards
Excellent Five (5) Year Factory Warranty
Specifications :
Optical System: infinity corrected
Nosepiece: reversed, ball bearing quadruple
Head: gemel type trinocular head, 30-degree inclined
Eyepiece: high eye-point plan eyepieces, PL10X22mm and WF30X
Objectives: infinity plan objectives 4X, 10X, 40X (spring), 100X (spring, oil)
Focusing: low position coaxial focus system
Focusing Range: 1-1/10" (28mm)
Interpupillary Adjustment Range: 2-1/10" - 3" (54-75mm)
Mechanical Stage: 5-9/10" x 5-1/2" (150mm x 140mm)
Stage Traveling Range: 2-9/10" x 2" (76x50mm)
Focusing Range: 0.95" (24mm)
Division of Fine Focusing: 0.00007874" (0.002mm)
Illuminator: Built-in Kohler 3W LED illumination system
Condenser: N.A. 1.25 Abbe
Illumination: Kohler, 3W LED
Power Supply: 90V-240 wide voltage, CE certified
Packing List :
One Trinocular Compensation-Free Head
One Microscope Body with Frame, Base, and Kohler Illumination System
Four High Quality DIN Infinity Plan Objectives: 4X, 10X, 40X, and 100X
One Pair of Widefield Eyepieces: PL10X
One Pair of Widefield Eyepieces: 20X
One Pair of Widefield Eyepieces: 25X
One Dust CoverImmersion Oil
User's Manual
Shipping Weight: 25 lbs
